型號

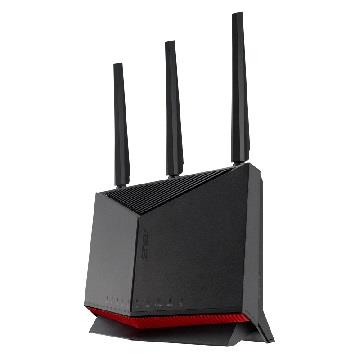

RT-BE86U

網路技術標準

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

產品規格

BE6800 ultimate BE performance : 1032 5764 Mbps

傳輸量

WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

天線

External antenna x 3； Internal antenna x 1

傳送 / 接收

2.4GHz 3x3
5GHz 4x4

處理器

2.6GHz quad-core processor

記憶體

256 MB Flash and 1 GB RAM

網速提升

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

運作頻率

2.4 GHz
5 GHz

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

網路埠規格

1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

按鈕

WPS Button, Reset Button, Power Switch, LED on/off Button

LED 指示燈

WAN x1
10G Port x1
LAN x4
USB x1
2.4GHz x1
5GHz x1
Power x1

電源規格

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

包裝內容物

RT-BE86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

產品淨重(g)

854 g

Product Dimensions

235*90*316 mm

獨家AiMesh技術

AiMesh
Primary AiMesh router
AiMesh node

遊戲加速

Mobile Game Mode
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port

家長貼心管理

Parental Control
Web & Apps Filters
Time Scheduling
Safe Browsing
Parental Control Customized Internet schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64

Guest Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
• Maximum Guest Network Rule : 2.4 GHz 5 GHz : 5
Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security

AiProtection
VPN
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

VPN

Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark

網路流量控制

Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
Website history

WAN

Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay

LAN

DHCP Server
有
IPTV
LAN Link Aggregation
Manually assign IP address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)

其他無線功能

UTF-8 SSID
WiFi MAC address filter
• Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming

USB埠應用

File System :
• HFS
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

User Interface

WEB: ASUSWRT
APP: ASUS Router APP

管理功能

Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
